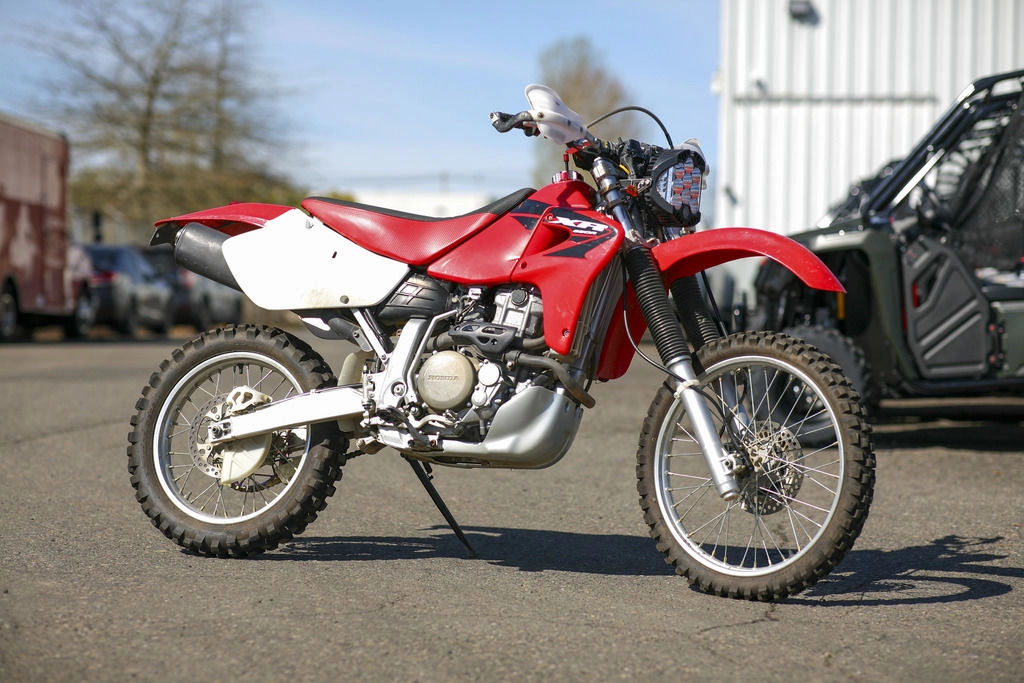

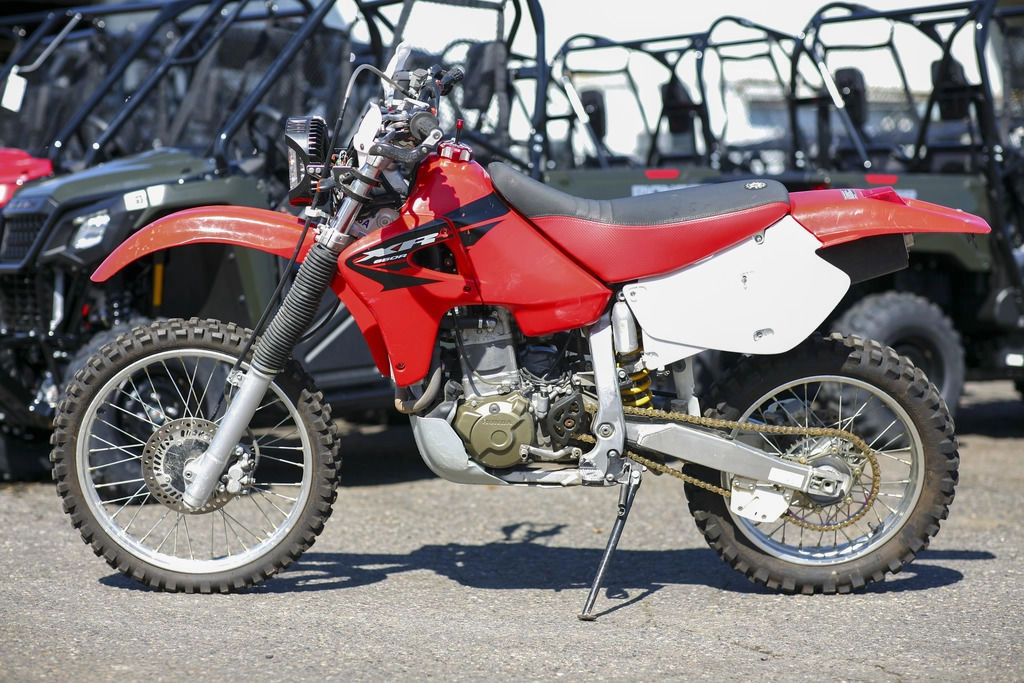

2005 Honda XR 650R
Time Rider! Rare R Model - BAJA Light - Super Clean - Aluminum Frame
Stock/unit photos are AI generated. They are a best estimation of the final product, but accuracy is not guaranteed.
Saved by 0 shoppers

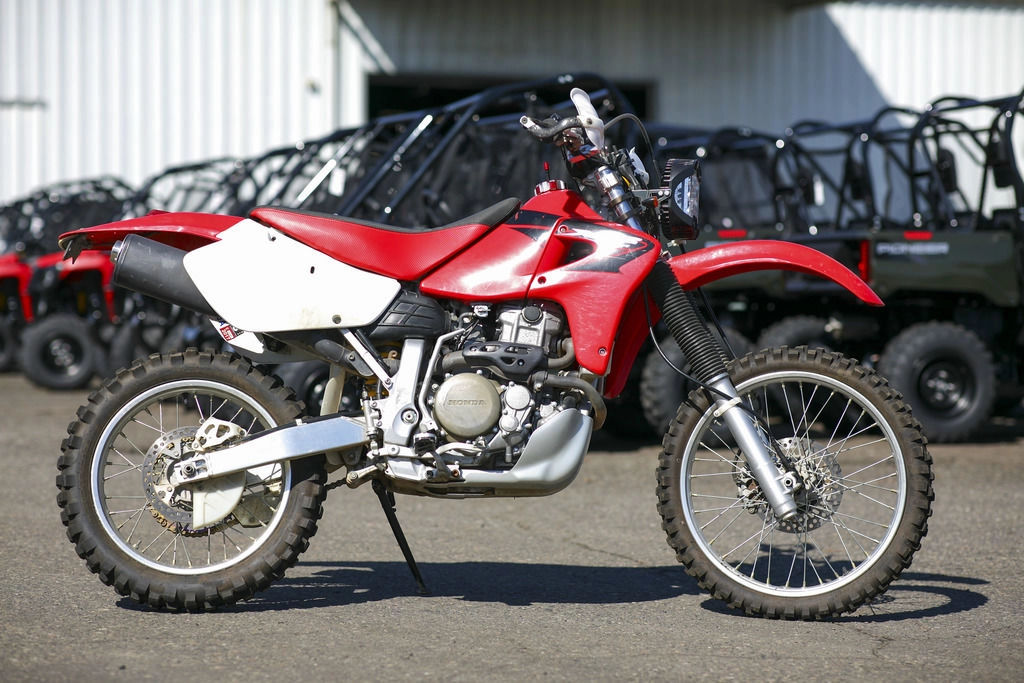

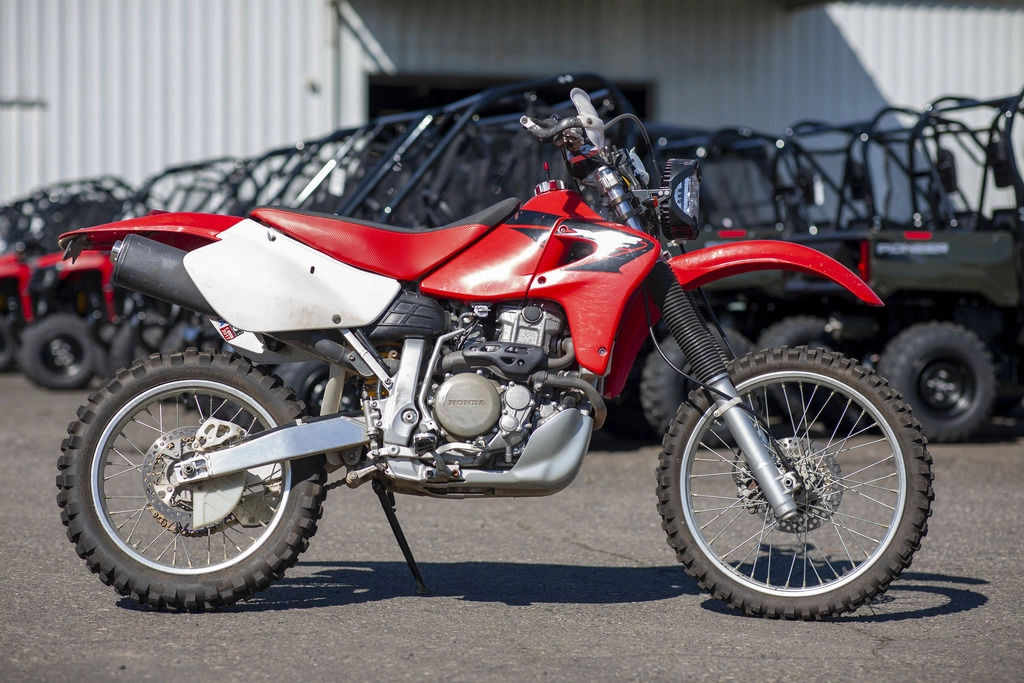

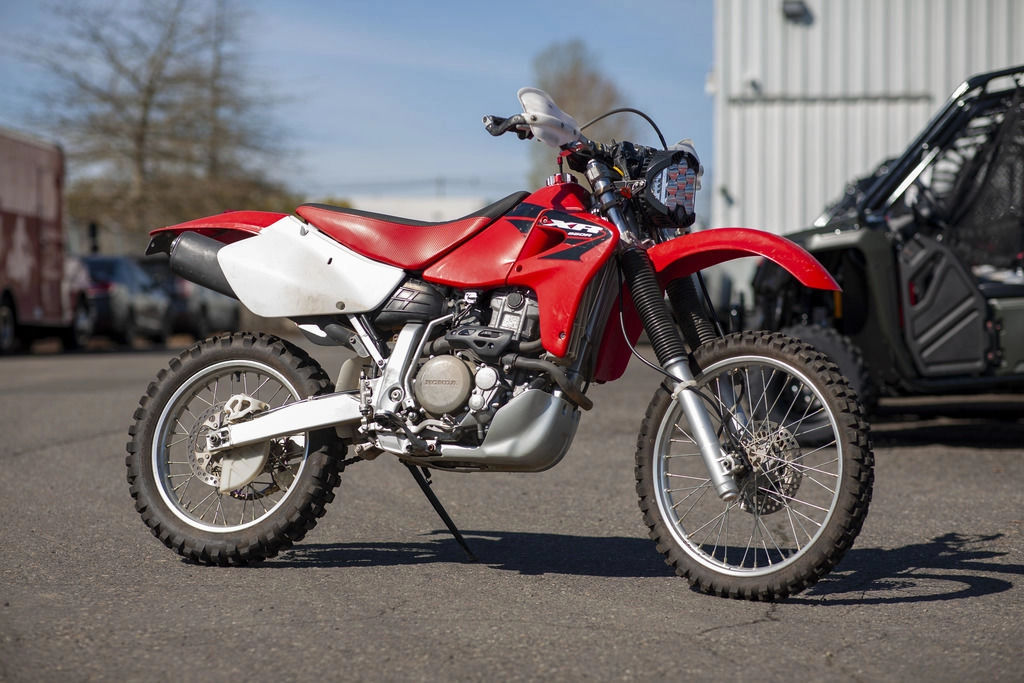

The 2005 Honda XR650R is a big-bore, liquid-cooled off-road thumper that Honda's own literature calls the undisputed king of the desert. It pairs a lightweight aluminum frame with long-travel Kayaba suspension and a 649cc four-valve engine. This one is the Red version, built for desert racing and trail riding.
- Engine: 649cc liquid-cooled, dry-sump single-cylinder four-stroke with SOHC, four valves and a Keihin 40mm piston-valve carburetor.
- Easy starting: automatic decompression system with a handlebar-mounted compression release.
- Smooth and durable: gear-driven counterbalancer, maintenance-free automatic cam-chain tensioner and dual aluminum radiators.

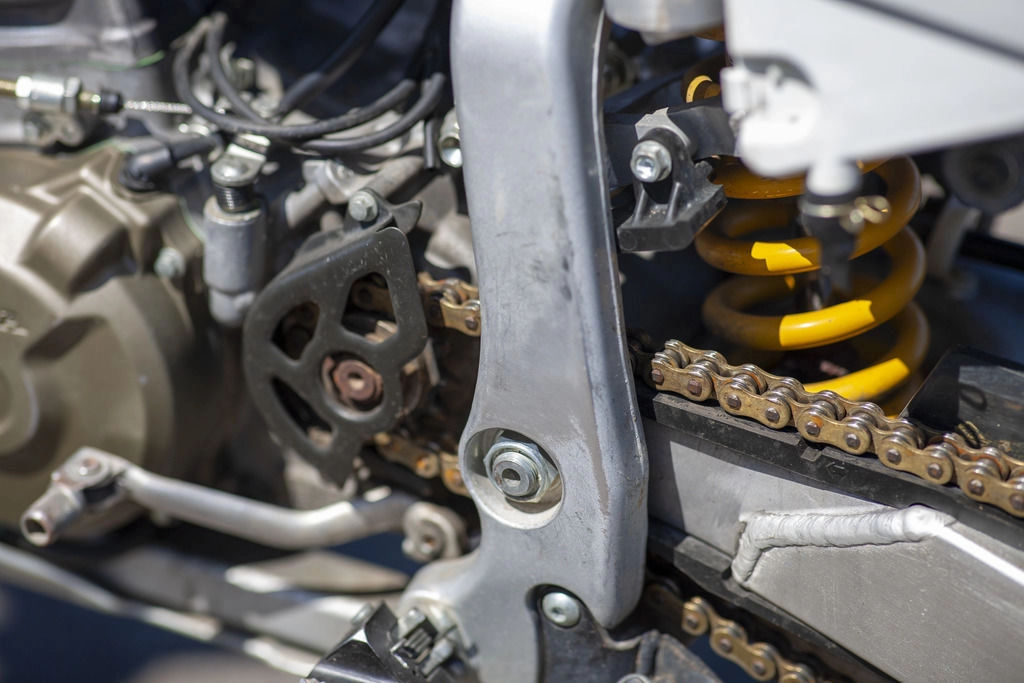

- Drivetrain: five-speed transmission, #520 O-ring chain and primary kickstarting that works in any gear.
- Frame: aluminum frame, subframe and tapered swingarm. The frame also holds the engine oil tank.
- Suspension: 46mm Kayaba cartridge fork with 11.2 inches of travel, plus a Pro-Link Kayaba shock with 12.1 inches of travel. Both have compression and rebound damping adjustment.

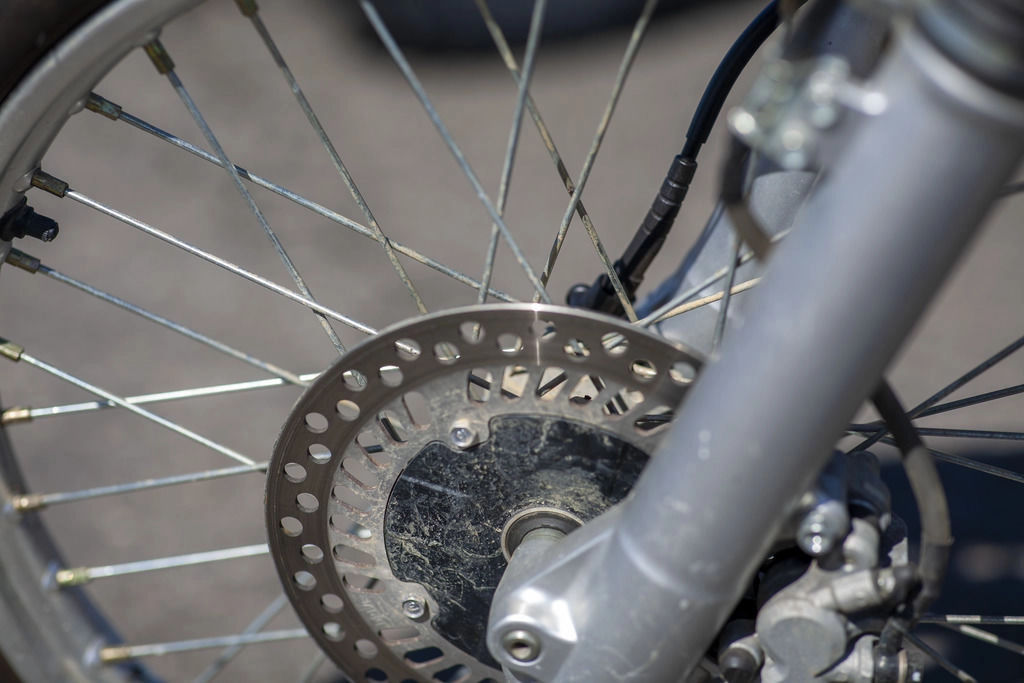

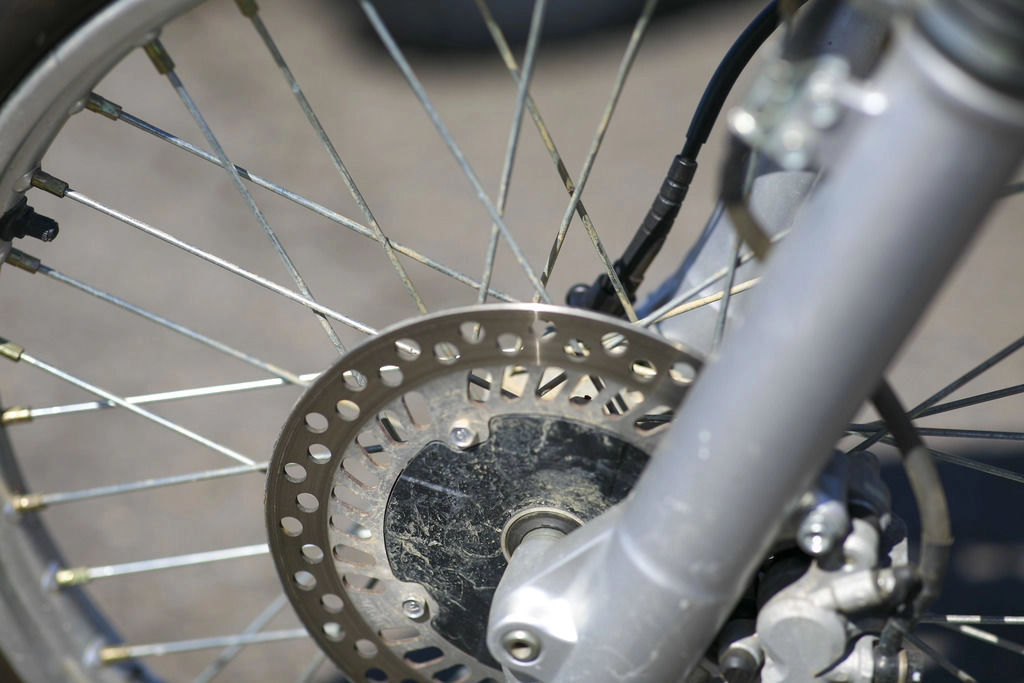

- Brakes: 240mm front and rear discs, with a twin-piston front caliper.
- Dimensions: 36.8-inch seat height, 12.0 inches of ground clearance, 277 lb dry weight and a 2.6-gallon fuel tank including a 0.5-gallon reserve.
Contact us to learn more about this pre-owned XR650R.
- Sale Price$3,999
- LocationHillsboro, Oregon
- ConditionPre-Owned
- Stock Number600328
- Year2005
- MakeHonda
- ModelXR 650R
- TypeMotorcycle
- CategoryOff Road
- VINJH2RE01055K600328
- ColorRed
- Engine Size649
- Fuel TypeGas
- StatusIn Stock
- Fuel Capacity2 gal
| Year | 2005 |
|---|---|
| Manufacturer | Honda |
| Model Name | XR |
| Trim Name | 650R |
| Generic Type (Primary) | Off-Road |
| Revision Status | Carryover |
| Engine | Standard |
| Engine Type | Single-Cylinder |
| Cylinders | 1 |
| Engine Stroke | 4-Stroke |
| Cooling | Liquid |
| Valves Per Cylinder | 4 |
| Valve Configuration | SOHC |
| Bore (mm) | 100 |
| Stroke (mm) | 82.6 |
| Displacement (cc) | 649 |
| Compression Ratio | 10:1 |
| Starter | Kick |
| Carburetion | Standard |
| Carburetion Brand | Keihin |
| Carburetion Type | Carburetor |
| Transmission | Standard |
| Transmission Type | Manual |
| Number Of Speeds | 5 |
| Primary Drive (Rear Wheel) | Chain |
| Reverse | No |
| Wheelbase (in) | 58.3 |
| Ground Clearance (in) | 12 |
| Dry Weight (lbs) | 277 |
| Dry Weight (kg) | 126.6 |
| Fuel Capacity (gal) | 2.6 |
| Fuel Capacity (l) | 9.8 |
| Body Material | Plastic |
| Front Suspension | Standard |
| Front Suspension Type | Telescopic Fork |
| Front Travel (in) | 11.2 |
| Rear Suspension | Standard |
| Rear Suspension Type | Twin Sided Swing Arm |
| Rear Travel (in) | 12.1 |

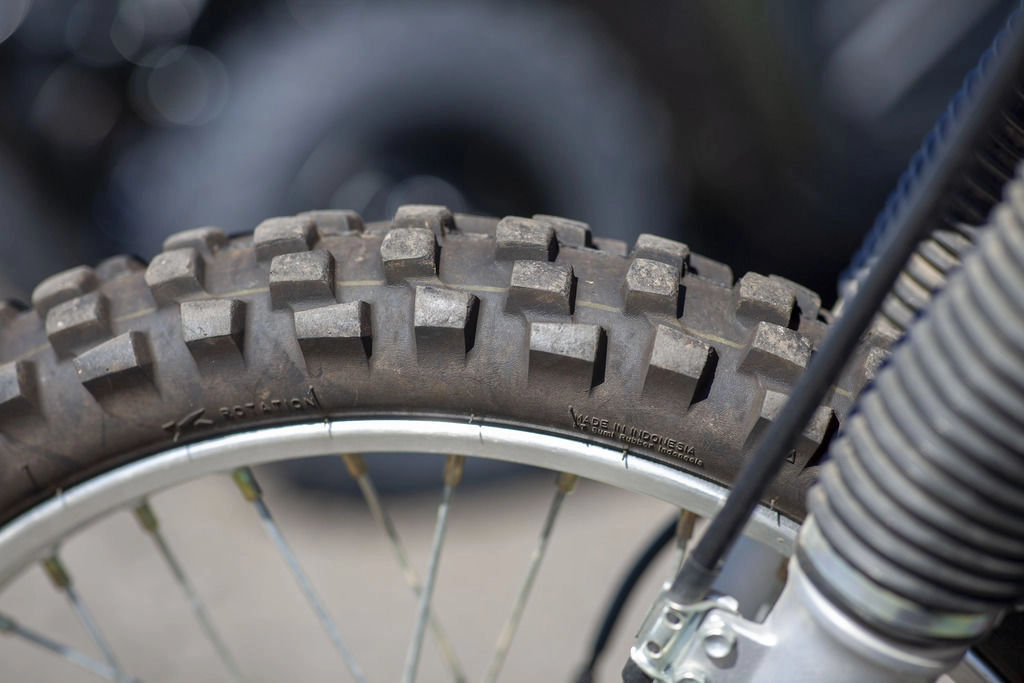

| Front Tire (Full Spec) | 80/100 R21 |
| Rear Tire (Full Spec) | 110/100 R18 |
| Brakes | Standard |
| Front Brake Type | Disc |
| Front Caliper Pistons | 2 |
| Rear Brake Type | Disc |

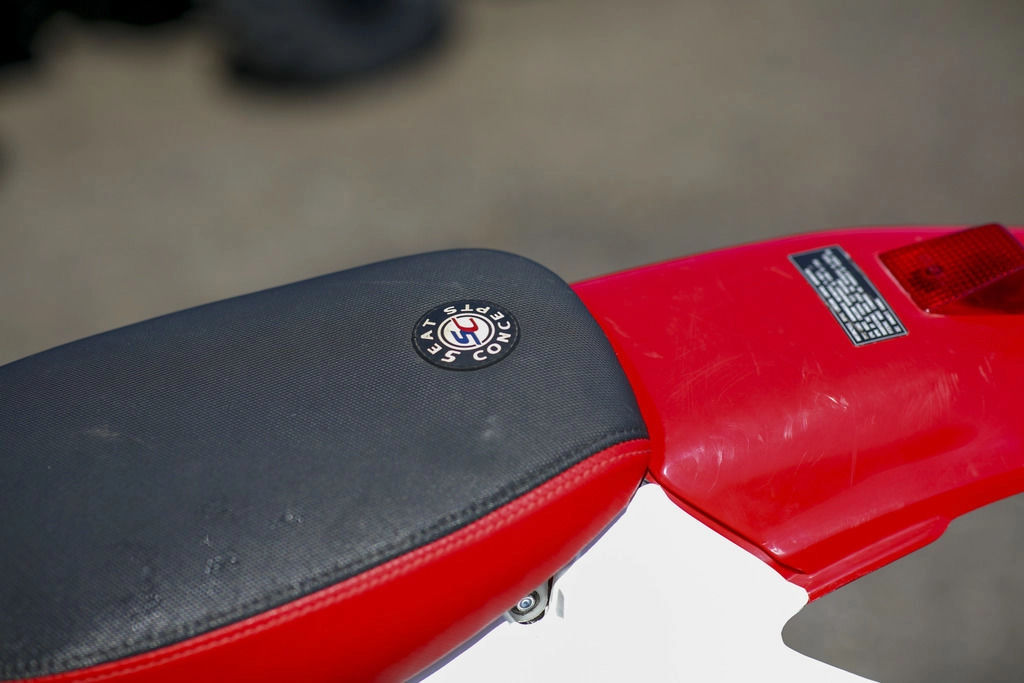

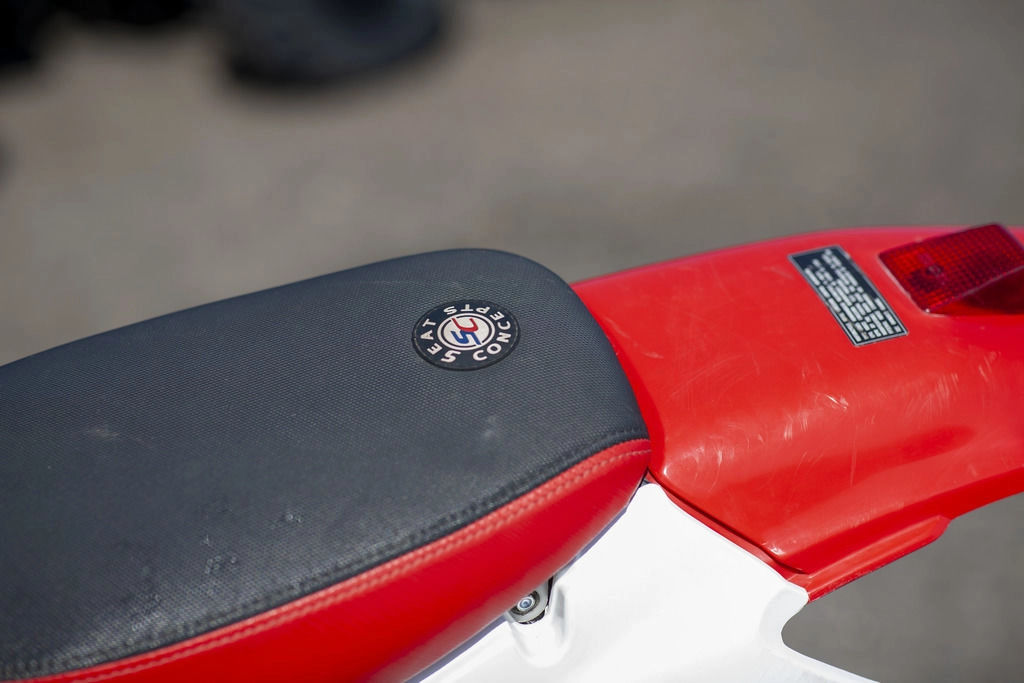

| Seat Height (in) | 36.8 |
| Seat Height (mm) | 934.7 |
| Number Of Seats | 1 |
| Seat Backrest | Not Available |
| Digital Instrumentation | Not Available |
| Tachometer | Not Available |
| Rear Rack | Not Available |
| Front Rack | Not Available |
| Halogen Headlight(s) | Standard |
| Rearview Mirrors | Not Available |
| Windshield | Not Available |
| Heated Hand Grips | Not Available |
| Primary Color | Red |
